CE认证中对LTE产品的射频测试要求
1. 概述
LTE(Long Term Evolution,长期演进)是一种无线数据通信技术标准,它是由3GPP(The 3rd Generation Partnership Project,第三代合作伙伴计划)组织制定的UMTS(Universal Mobile Telecommunications System,通用移动通信系统)技术标准的长期演进。后续LTE的继续演进为LTE-A(LTE-Advanced),LTE-A是一个后向兼容的技术,完全兼容LTE,是演进而不是革命。
LTE目标提高移动通信网络的用户容量和传输速度。对于用户来说,它意味着更快的移动下载速度,无线共享视频和大型文件的能力以及更快地传送视频和真正的移动电视,能问用户提供更多更好的服务。
为了充分享受LTE通信带来更好更方便的服务,用户还需要借助格式各样的LTE终端才能实现,而不少终端厂商正是看到了未来通信的巨大市场潜力,已经开始把眼光瞄准到生产LTE通信终端产品上。生产出来的LTE产品,为了保证质量和符合世界各地市场准入的法律法规要求,还需要经过大量的测试。最终LTE产品到了用户手上,用户就可以通过LTE产品随心所欲的漫游,随时随地的享受高质量的通信了。
2. 测试遵从的标准
LTE产品射频测试的协调标准是EN 301 908-13,标题如下:
IMT cellular networks; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive; Part 13: Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)
而EN 301 908-13中提到的测试方法又源自3GPP TS 36.521-1标准。
目前在ETSI官方网站上发布的最新版本是EN 301 908-13 v6.2.1,但在当前最新欧盟的OJ文件(Official Journal of the European Union)中(12.10.2013版),公布的协调标准版本是EN 301 908-13 v5.2.1。
巴伦实验室完全具备EN 301 908-13 v5.2.1/v6.2.1和3GPP TS 36.521-1这些标准的测试资质,也拥有先进的LTE测试系统和强大的LTE产品测试能力,可以为您的产品提供一站式的测试以及认证,帮助您快速打通世界各地市场准入的关卡。
3. 测试要求
在EN 301 908-13中具体的测试要求如下:
No. |
3GPP TS 36.521-1 |
EN 301 908-13 |
EN-R (note) |
Status |
Type |
1 |
6.2.2 |
4.2.2.1 |
Transmitter maximum output power for Single Carrier |
U |
LTE |
2 |
6.3.2 |
4.2.5.1 |
Transmitter minimum output power for Single Carrier |
U |
LTE |
3 |
6.6.2.1 |
4.2.3.1 |
Transmitter spectrum emission mask for Single Carrier |
U |
LTE |
4 |
6.6.2.3 |
4.2.11.1 |
Transmitter adjacent channel leakage power ratio for Single Carrier |
U |
LTE |
5 |
6.6.3.1 |
4.2.4.1 |
Transmitter spurious emissions for Single Carrier |
U |
LTE |
6 |
6.6.3.2 |
4.2.4.1 |
Transmitter Spurious emission band UE co-existence for Single Carrier |
U |
LTE |
7 |
7.5 |
4.2.6 |
Receiver adjacent channel selectivity (ACS) |
U |
LTE |
8 |
7.6.1 |
4.2.7 |
Receiver blocking characteristics (In-Band) |
U |
LTE |
9 |
7.6.2 |
4.2.7 |
Receiver blocking characteristics (Out-Of-Band) |
U |
LTE |
10 |
7.6.3 |
4.2.7 |
Receiver blocking characteristics (Narrow-Band) |
U |
LTE |
11 |
7.7 |
4.2.8 |
Receiver spurious response |
U |
LTE |
12 |
7.8.1 |
4.2.9 |
Receiver intermodulation characteristics |
U |
LTE |
13 |
7.9 |
4.2.10 |
Receiver spurious emissions |
U |
LTE |
14 |
6.2.2A.1 |
4.2.2.2 |
Transmitter output power for intra-band contiguous Carrier Aggregation (DL CA and UL CA) |
C1 |
CA |
15 |
6.3.2A.1 |
4.2.5.2 |
Transmitter minimum output power for intra-band contiguous Carrier Aggregation (DL CA and UL CA) |
C1 |
CA |
16 |
6.6.2.1A.1 |
4.2.3.2 |
Transmitter spectrum emission mask for intra-band contiguous Carrier Aggregation (DL CA and UL CA) |
C1 |
CA |
17 |
6.6.2.3A.1 |
4.2.11.2 |
Transmitter adjacent channel leakage power ratio for intra-band contiguous Carrier Aggregation (DL CA and UL CA) |
C1 |
CA |
18 |
6.6.3.1A.1 |
4.2.4.2 |
Transmitter spurious emissions for intra-band contiguous Carrier Aggregation (DL CA and UL CA) |
C1 |
CA |
19 |
6.6.3.2A.1 |
4.2.4.2 |
Spurious emission band UE co-existence for CA (intra-band contiguous DL CA and UL CA) |
C1 |
CA |
20 |
6.2.2B |
4.2.2.3 |
Transmitter output power for UL-MIMO |
C2 |
UL-MIMO |
21 |
6.3.2B |
4.2.5.3 |
Transmitter minimum output power for UL-MIMO |
C2 |
UL-MIMO |
22 |
6.6.2.1B |
4.2.3.3 |
Transmitter spectrum emission mask for UL-MIMO |
C2 |
UL-MIMO |
23 |
6.6.2.3B |
4.2.11.3 |
Transmitter adjacent channel leakage power ratio for UL-MIMO |
C2 |
UL-MIMO |
24 |
6.6.3B.1 |
4.2.4.3 |
Transmitter spurious emissions for UL-MIMO |
C2 |
UL-MIMO |
25 |
6.6.3B.2 |
4.2.4.3 |
Spurious emission band UE co-existence for UL-MIMO |
C2 |
UL-MIMO |
其中“Status”一列代表测试选择条件,意思如下:
U是代表必做的测;
C1是代表只有支持CA功能的需要测试;
C2是代表只有支持UL-MIMO功能的需要测试。
CA(Carrier Aggregation)是载波聚合,UL-MIMO是上行MIMO。CA和UL-MIMO是属于R10版本的特性,也就是说是属于LTE-A的关键技术。
LTE-A的关键技术还包括:多点协作传输(Coordinated Multi-point Tx&Rx)、中继(Relay)、异构网干扰协调增强(Enhanced Inter-cell Interference Coordination forHeterogeneous Network)等,能大大提高无线通信系统的峰值数据速率、峰值频谱效率、小区平均谱效率以及小区边界用户性能。但目前LTE-A的商用网络很少,支持LTE-A的终端也非常少,大部分还只是支持LTE的终端,所以一般的产品只需要完成LTE那部分的测试。
4. 测试结果展示

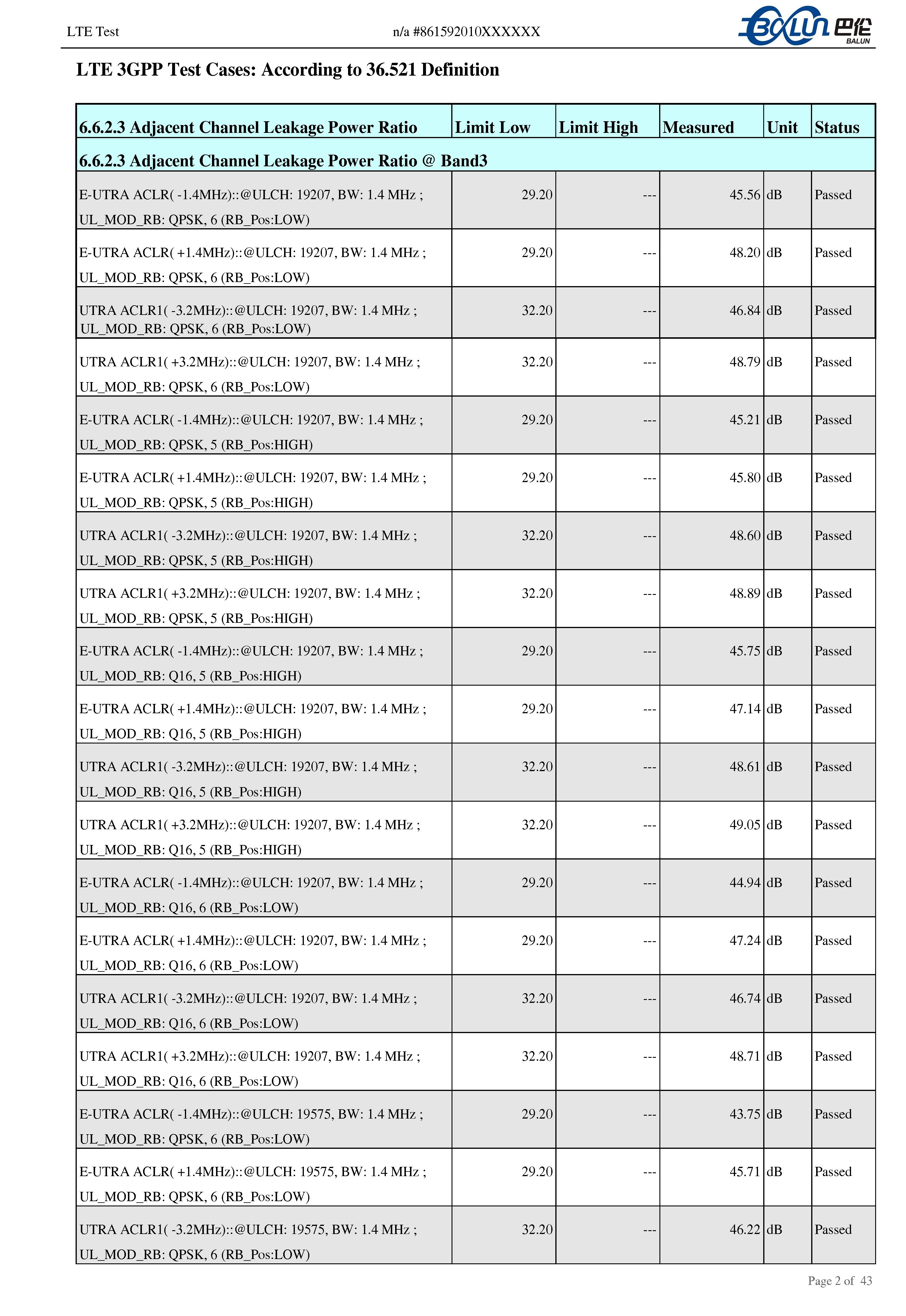

这是巴伦实验室使用LTE测试软件得到的部分LTE测试结果。巴伦实验室使用自主研发的2G/3G/4G射频测试系统,已经进行过非常多的LTE测试项目,在这个领域有很丰富的测试经验。
巴伦实验室除了满足LTE产品的测试外,也可以提供各种通信制式产品测试,如:GSM、GPRS、EDGE、CDMA、EVDO、TD-SCDMA、WCDMA、HSDPA、HSUPA、HSPA+、蓝牙、WiFi等产品。巴伦实验室在通信产品领域具有强大的测试能力和丰富的测试经验,为您的产品的性能验证和出口认证提供更多的便利和帮助。
后续巴伦实验室会继续介绍各种主流认证的LTE测试需求,敬请密切关注。如果想了解更多的测试信息可发邮件至info@baluntek.com 或者电话至0755-66850100联系巴伦实验室(BALUN)进行咨询。
